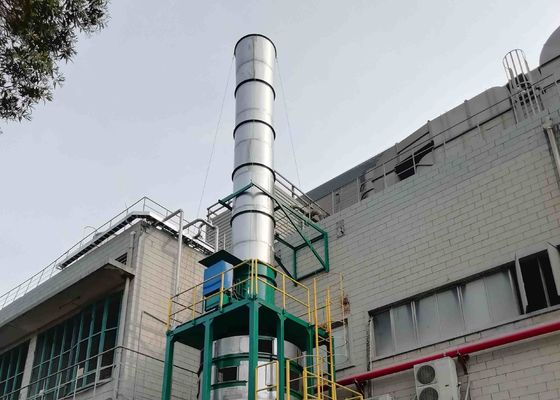

High Efficiency Exhaust Gas Scrubber System Waste Gas Purification

High Efficiency Exhaust Gas Scrubber Waste Gas Purification

After the exhaust air of the paper machine is discharged into the atmosphere, it will form a "white fog" and "drizzle" phenomenon, especially when the temperature is low in winter. These exhaust air contains harmful components, and are highly corrosive, and will pollute the environment. Therefore, it is necessary to add a hood air exhaust defogging device for treatment to make it meet the environmental protection emission requirements.

Materials

Stainless steel and high temperature resistant PP material

Functions

The main function of this system is mixing with cold air through spraying to reduce the harmful components in the exhaust air and reduce the emission temperature of the exhaust air, so as to make it meet the environmental protection emission requirements.

Advantages

The company team has many successful cases in exhaust air treatment projects in the paper industry and tobacco industry, and has relatively mature design experience.

Working principle

The spray mixing tower integrates cold water spray and cold air mixing. The exhaust air enters from the bottom of the tower and flows upward through the gap of the folding baffle. The cold water atomizes through the nozzle and becomes numerous water droplets, which are sprayed on the exhaust air and the folding baffle. It carries out heat transfer and mass transfer with the wet and hot exhaust air to cool and condense the exhaust air. At the same time, the water droplets are heated and fall into the bottom drain outlet for discharge. The bottom enters the mixing section upward after two stages of spraying.

There are air inlets on both sides of the mixing section. Fresh air is pumped into the tower and fully mixed with the exhaust air. After heat transfer and cooling, the exhaust air is condensed again. When it passes through the gap of the baffle plate, it is condensed and separated. The exhaust air and cold air are mixed twice and then cooled by a cold water spray, and finally discharged into the atmosphere by the exhaust fan.

Specifications

Exhaust air volume, exhaust air temperature and space location

If the customer provides the above parameters, technical proposal and equipment selection can be arranged soon.
